Bonding Visualization

This activity is designed to explose students to a variety of different visualizations concerning chemical bonding for the purpose of identifying characteristics of "good" visualizations. This activity can be run well as a class discussion, with an activity allowing students to generate their own bonding visualization following

Here are two visualization examples. What is the difference between the visualizations in each set?

Below are some visualization examples that I found online. Based on the criteria we came up with, what are some positive and negative characteristics of each one?

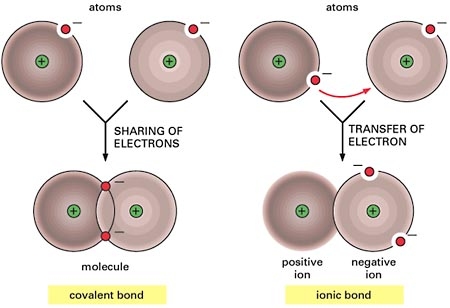

• Cartoon showing how electrons participate in covalent and ionic bonding.

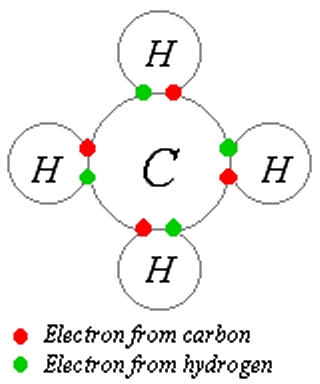

• Diagram showing electron placement for a particular type of bonding (which kind?)

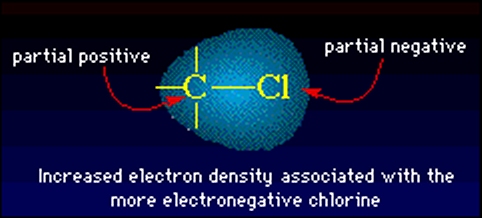

• Illustration detailing electronegativity

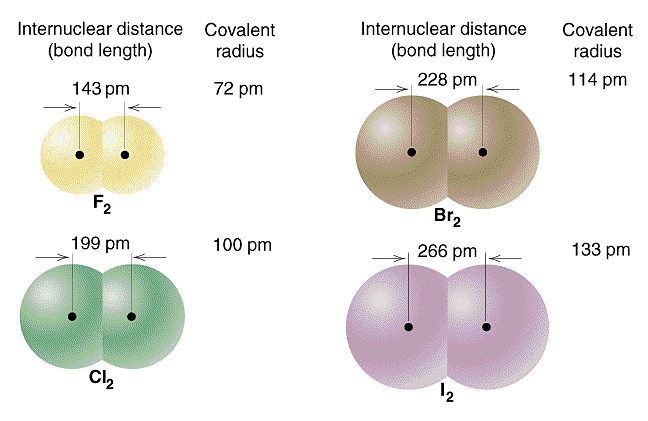

• Cartoon illustrating bond lengths

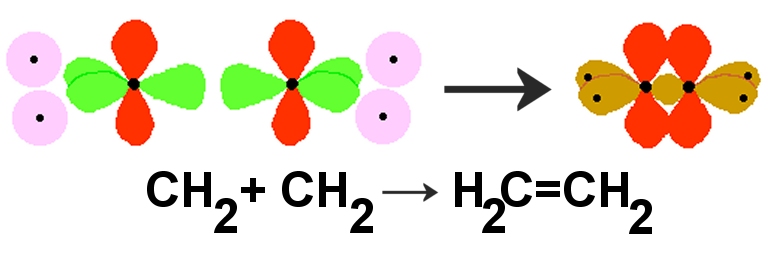

• Visualization of formation of a chemical, highlighting orbital orientation.
